Your Car’s AC System: The Basics

Compressor

The compressor is the heart of the AC system. It takes low-pressure, low-temperature refrigerant gas and cranks it up to high pressure and heat. Think of it as the pump that gets the whole cooling process rolling.

Condenser

Next up is the condenser, which acts like a mini radiator. It cools down the hot refrigerant gas from the compressor, turning it into a high-pressure liquid. This process releases heat, and cooling fans help blow that heat away.

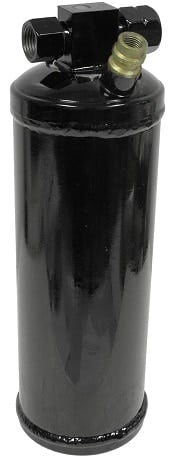

Receiver/Dryer

The receiver/dryer filters out moisture from the refrigerant. Moisture can freeze and mess with the system, so it’s gotta go. It’s like that little packet in a shoe box that keeps things dry—super important!

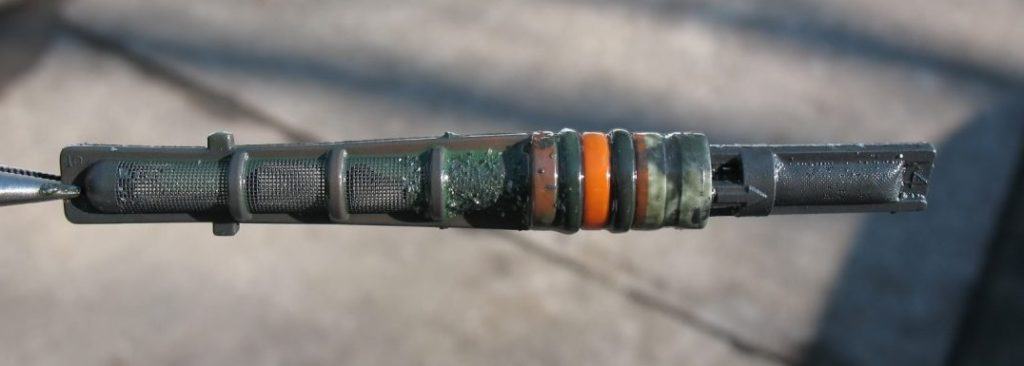

Expansion Valve/Orifice Tube

The expansion valve controls how much refrigerant flows through the system, letting it expand and cool down. Some systems use an orifice tube instead, which does a similar job but with a bit of a twist.

Evaporator

The evaporator absorbs heat from the cabin air, cooling it down to around 32°F. A fan then pushes this chilly air into the car, while the refrigerant heads back to the compressor to start the cycle again.

5 Reasons Your AC Is Blowing Hot Air and How to Fix Them

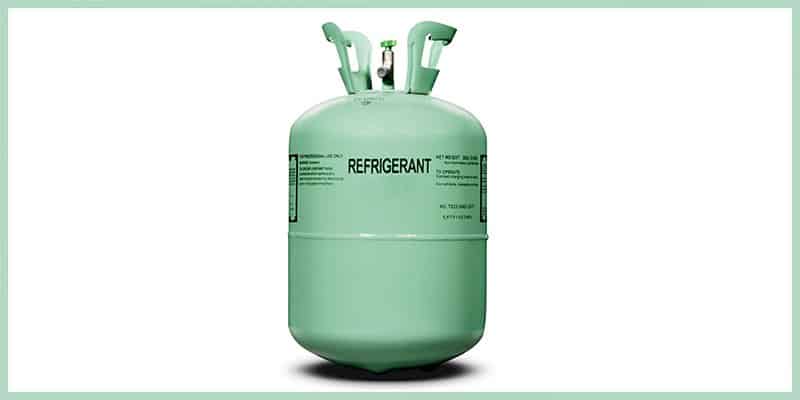

1. Your Car Is Leaking Refrigerant

If the AC is blowing lukewarm air, a refrigerant leak is often the culprit. Since refrigerant cycles through the system, it shouldn’t need a top-up unless there’s a leak. Finding that leak can be tricky because it turns to gas when it escapes.

Two options exist for dealing with this: take the car to a shop to get the leak fixed or try an AC leak sealer for minor leaks. The shop fix can run anywhere from $225 to $1600, depending on the damage. A sealer can cost between $25 and $50, but make sure to follow the instructions carefully.

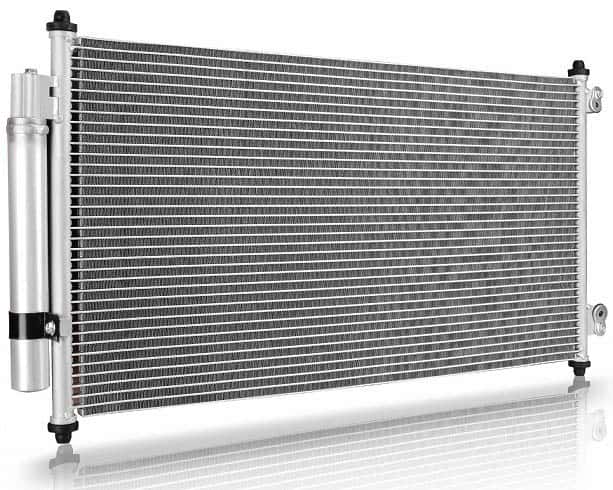

2. The Condenser Is Malfunctioning

If the condenser is blocked or damaged, it can’t do its job of cooling the refrigerant. This could be from road debris or wear and tear. Repairing a condenser usually means replacing it, which can cost between $450 and $950.

3. Issues in the Electrical System

Electrical problems can also cause the AC to blow warm air. If components aren’t getting power, they won’t work. Fixing frayed wires might be doable with some electrical tape, but it’s often best to let a pro handle it.

4. Problems With the Cooling Fans

The cooling fans help keep the condenser cool. If they’re not working, the refrigerant can’t cool down properly. This could be due to a blown fuse or damage from debris. Replacement costs can range from $300 to $500.

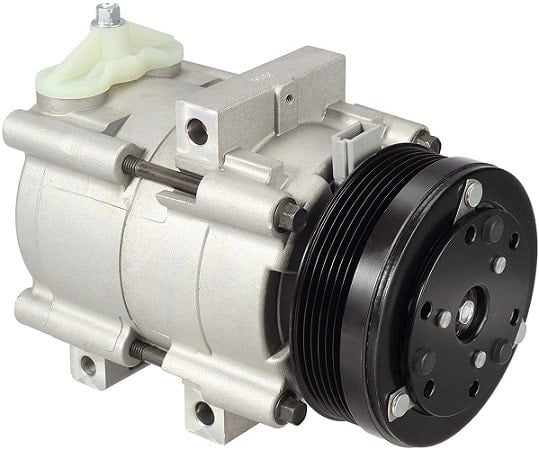

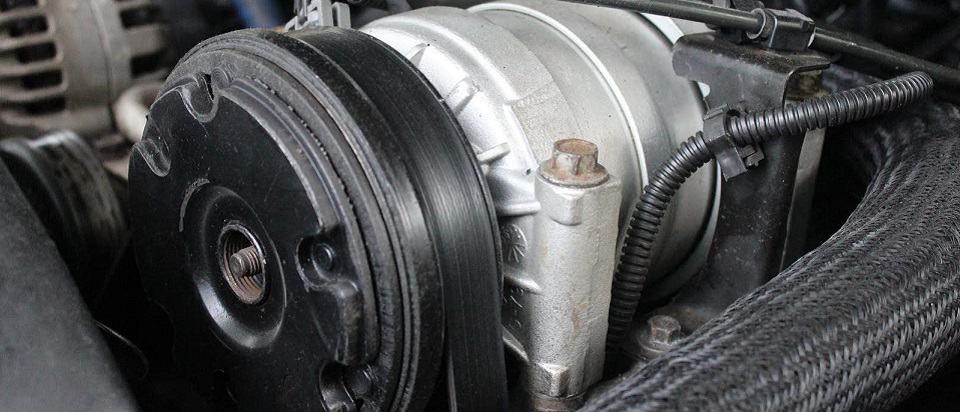

5. The Compressor Is Faulty

The compressor is the powerhouse of the AC system. If it’s not working, the whole system fails. Lack of use can wear it out faster, so it’s a good idea to run the AC for about 15 minutes every few weeks to keep it in shape. Replacing a compressor can cost between $500 and $700.
