How Does It All Work?

At the heart of a car’s electrical system are the battery and alternator. Together, they send electrical currents through intricate pathways to power everything from headlights to radios, spark plugs, sensors, and the ECU.

With the rise of electric vehicles, manufacturers are pouring more resources into electrical tech, and the benefits are clear.

So, how does this whole electrical system work? While diving deep can get tricky, this overview should shed some light on the essentials.

Key Electrical Terms to Know

When chatting about automotive circuitry, a few terms pop up regularly. Here’s the lowdown on some of the most common ones:

• Coulomb (charge) – A massive number, about 6.25 quintillion electrons.
• Amp (current) – This measures how much charge is flowing at any point in time.
• Ohm (resistance) – Think of it as the friction appliances have against the current.
• Volt (potential) – Picture blowing air through a partially blocked tube; more pressure means higher voltage.
• Cell – A unit that creates voltage through a chemical reaction.
• Battery – A collection of cells working together; car batteries typically have six 2.1V cells, totaling around 12.6V.

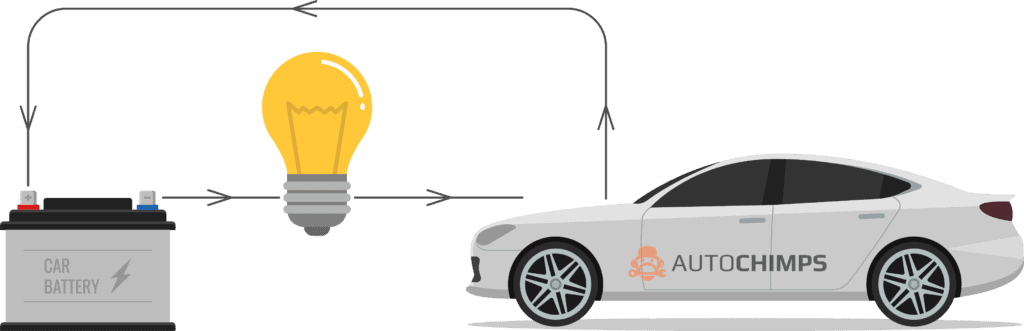

• Ground/Earth – For circuits to work, they need a complete path back to the battery. In cars, this is done through the chassis.
• Appliance – Any part of the electrical system that needs power, like light bulbs or radios.
• Electromagnetism – When current flows through a wire, it creates a magnetic field.
• Alternating Current (AC) – The flow of electrons changes direction rapidly, like in home electrical systems.
• Direct Current (DC) – Electrons flow in one direction, typical in battery-powered devices like cars.

A Quick Physics Refresher

No need to hit the books for a physics degree here! Just a quick reminder of some basics:

It’s pretty wild, but no one really knows what electricity is. Sure, there are theories, but the physical substance? A total mystery to even the sharpest minds out there.

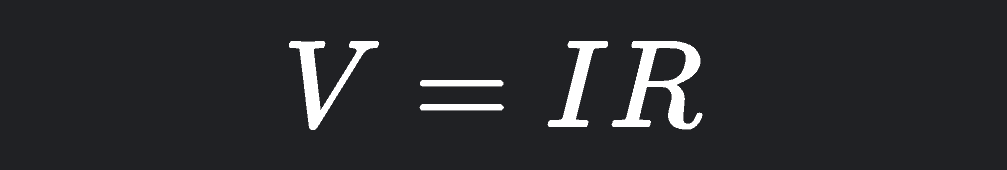

Ohm’s Law is the backbone of everything electrical engineers study. It lays out how voltage, current, and resistance are all connected.

In short, Ohm’s Law tells us that current (A) needs a certain voltage (V) to push through resistance (Ohms).

While Ohm figured this out in 1827, Coulomb was already on the scene in 1785, linking current and charge.

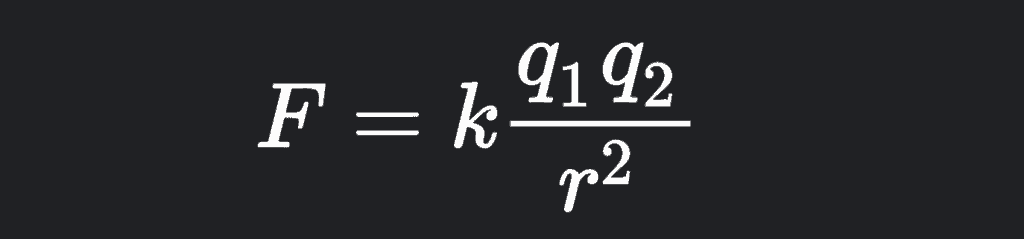

Coulomb’s Law measures current (A) as the amount of charge (Q) passing a point each second.

The Charging Components of Your Car’s Electrical System

Car electrical systems are intricate, but every modern vehicle has two key players: the battery and the alternator.

Fun fact: before the ’60s, cars were equipped with generators (dynamos) instead of alternators.

What’s a Car Battery?

While it’s often said that a car battery delivers 12 volts, that’s a bit off. It actually has six 2.1V cells, totaling 12.6 volts. That’s the number to look for when checking it out.

Car batteries are lead-acid types, with lead plates submerged in a mix of acid and water. Chemical reactions create an uneven charge across the plates, leading to the positive and negative terminals.

Wires connect the anode to the cathode, creating a circuit that powers the car’s electronics. It’s important to note that batteries store chemical energy, not electricity. They convert that energy into electricity when needed.

Eventually, the acid reacts with the plates, turning into lead sulfate and water, which means no more particles to generate electrons. That’s where the alternator steps in.

What’s a Car Alternator?

Think of an alternator like charging your phone while using it. Its main job is to recharge the battery and power certain systems when needed.

Wired into the car’s electrical setup, the alternator reverses the chemical reaction in the battery, letting those ions return to the lead-water solution for reuse.

It generates a charge through electromagnetism, sending current to a rotor that induces a magnetic field. As the rotor spins, it creates a charge in the stationary stator.

Using three coils, it produces a steady three-phase current. A regulator keeps the output consistent, and a rectifier converts AC into the DC that powers the car.

How Does a Car Start?

When the ignition key is turned (or the start button pressed), a switch completes the circuit to the starter motor, known as the ignition switch.

With the circuit closed, current flows from the battery to the starter motor, which uses a solenoid to engage with the engine’s flywheel. This gives the engine the kick it needs to start.

Once the engine fires up, the alternator takes over, recharging the battery. If the battery was low before starting, it might take a bit of driving to get it back to full.

How Does a Car Use Electricity?

A car’s electrical system operates on a three-part concept. When the engine runs, all components work together, including the wiring connecting them.

The battery and alternator supply energy to the devices, while also recharging the battery. Outputs fluctuate constantly, sometimes slightly, other times significantly.

If the battery output dips, the alternator compensates. Conversely, if the alternator’s output drops, the battery kicks in to power the electrical components.

Common Electrical Appliances and Their Power Usage

Every vehicle is unique, but here’s a rundown of typical electrical appliances and their average current draw:

• Battery (charging current) – 45A to 200A (must be regulated to avoid overheating)
• Sidelights – 0.5A

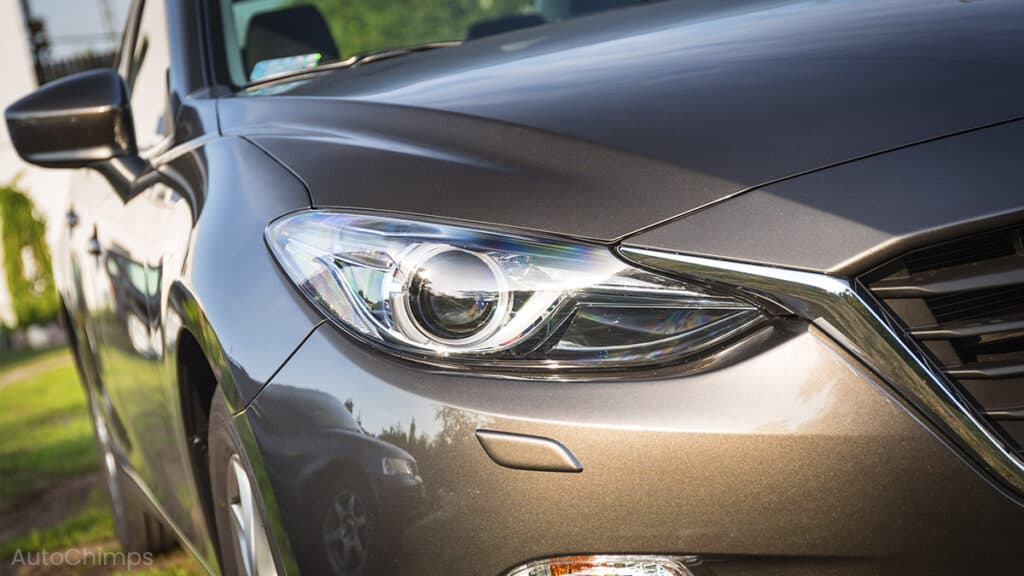

• Low-beam headlights – 7A to 10A
• High-beam headlights – 10A to 15A
• Ignition coils/spark plugs – about 5A per coil
• Wiper motor – 2A to 4A
• Radio and speakers – 40A

4 Surprising Facts About Car Electrical Systems

1. Current is the Real Danger

Current is the killer. The higher the current, the more electrons are flowing. Voltage is just the pressure pushing those electrons. A high current/low voltage system, like in cars, is less likely to shock, but caution is still key.

2. Protecting the Electrical System

Fuses are the guardians of the electrical system, breaking the circuit if the current gets too high. It’s best to avoid using any electrical appliances when the engine’s off, except for the starter motor. Running the battery down too often can lead to bigger issues.

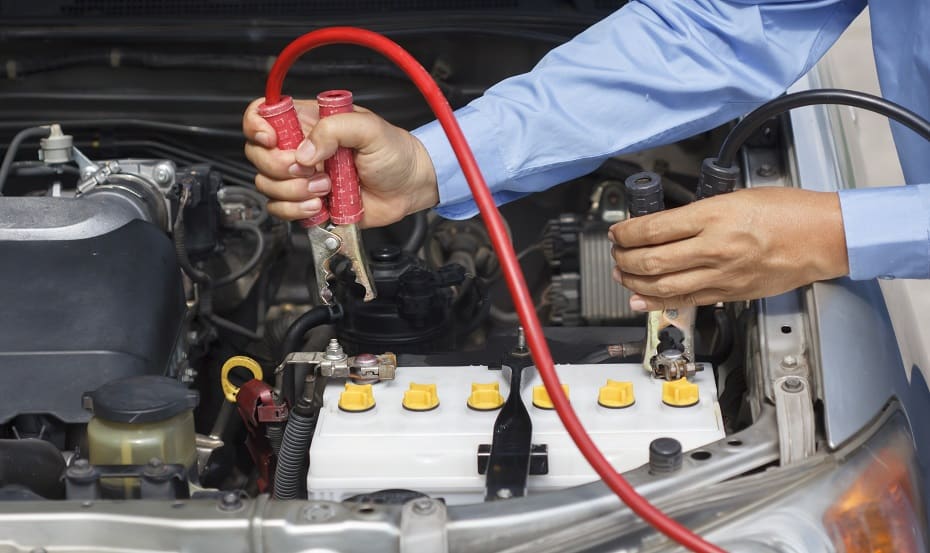

3. Jump-Starting in the Right Order

Always connect the positive terminals first when jump-starting a car. This helps avoid sparks and potential short circuits, which can be dangerous. Connecting the negative cable to the chassis instead of the terminal minimizes risks further.

4. Why the 12V System?

Despite a car battery producing 12.6V, it’s called a 12V system because older cars used three 2.1V cells, totaling 6.3V. Today’s batteries use six cells, but the naming convention stuck.
