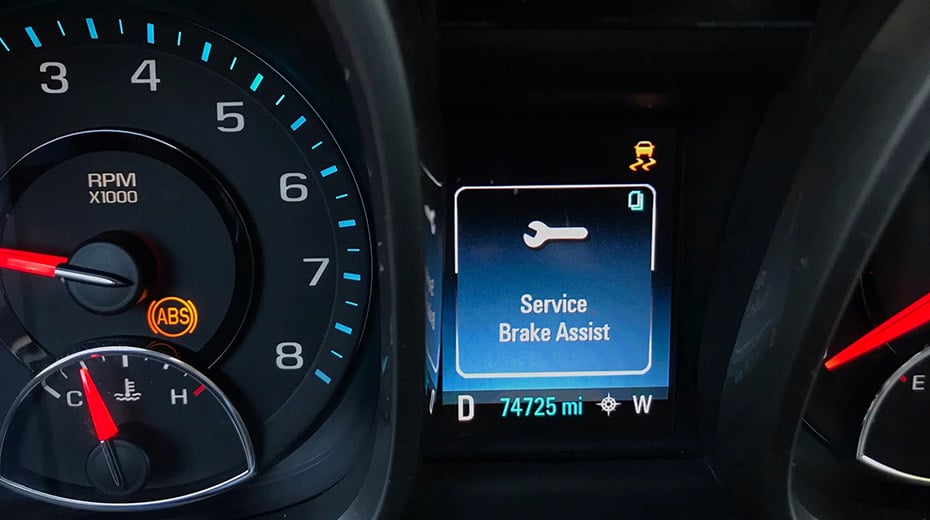

What Triggers the Service Brake Assist Light?

There are a few common culprits that can set off that pesky Service Brake Assist light:

• Faulty sensor
• Old or low brake fluid
• ABS/TC/ESC malfunction
• Bad electronic control unit
• Brake booster problem
• Wiring or signal fault

This guide digs into these issues and offers some tips on what to do if that warning light pops up. Plus, there’s info on how to reset the BA system after tackling the root problem.

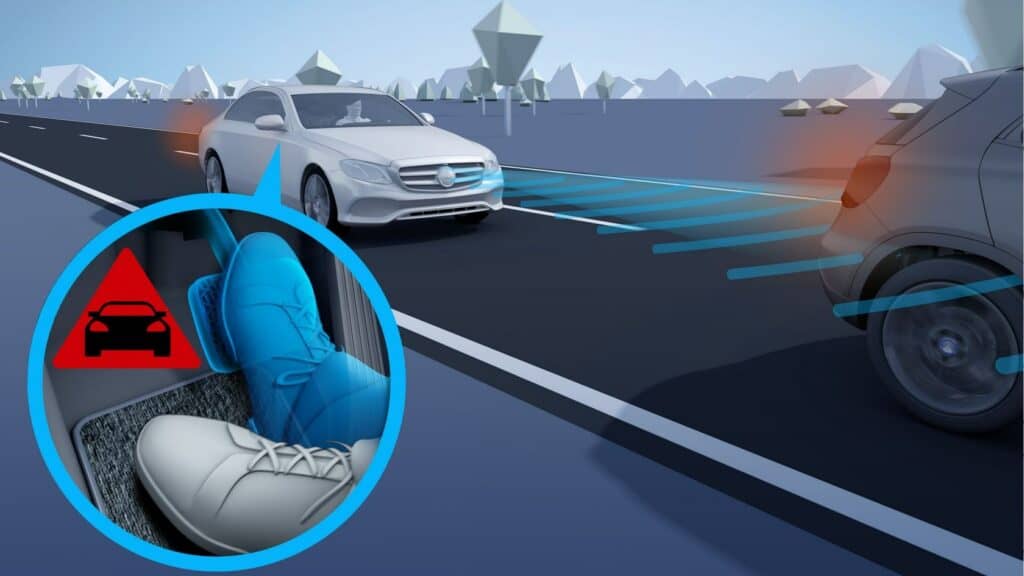

How Does Emergency Brake Assist Work?

In simple terms, when Brake Assist detects the brake pedal being pressed quickly and firmly, it cranks up the hydraulic pressure to the max. This means drivers don’t have to slam the pedal all the way to the floor for full stopping power. Just a little push does the trick.

There are two main types of BA systems: mechanical and electronic. These days, it’s all about the electronic version, which varies from one car maker to another but operates on the same basic principle.

Want to see how it works? Check out a detailed video on Brake Assist from a popular engineering channel.

6 Reasons the Service Brake Assist Light Might Show Up

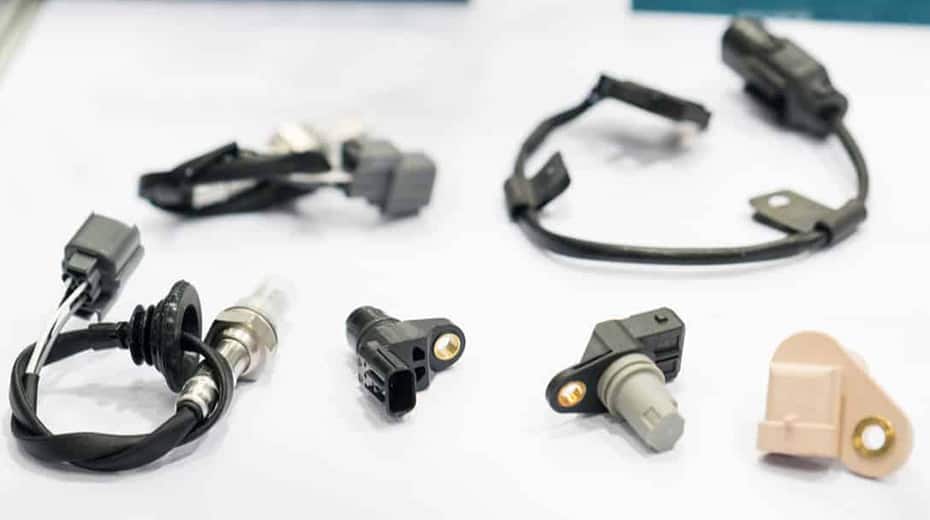

#1. Faulty Sensor

Brake Assist relies on several sensors, depending on the car model. These sensors track hydraulic pressure, wheel speed, and even the positions of the brake and accelerator pedals. If one of these crucial sensors fails, the system might throw a Service Brake Assist warning.

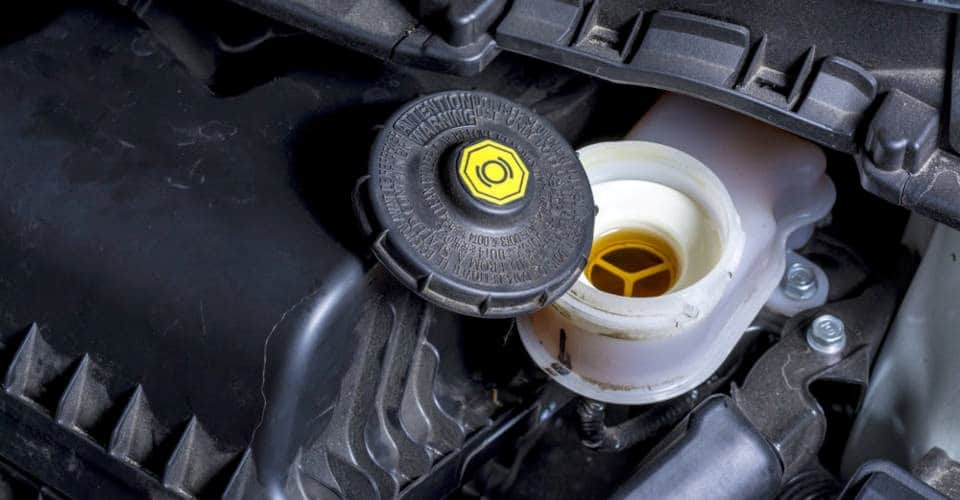

#2. Old or Low Brake Fluid

When rapid braking is detected, the master cylinder pre-fills the brakes with hydraulic fluid. But if the brake fluid is low, the system struggles to build enough pressure, triggering that warning light.

#3. ABS/TC/ESC Malfunction

Brake Assist works alongside other safety features like Traction Control (TC) and Electronic Stability Control (ESC). If there’s a glitch in one of these systems, it can confuse the electronic control unit (ECU) and light up the Service Brake Assist warning.

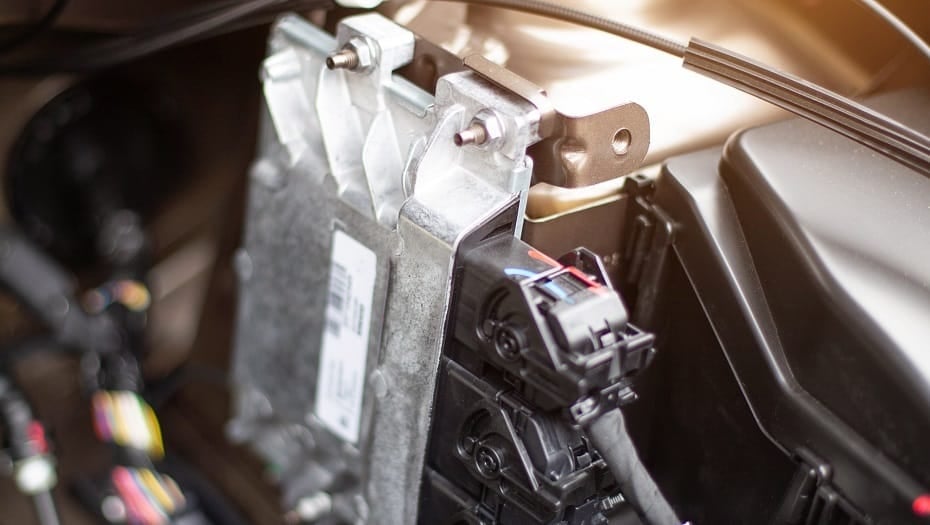

#4. Bad Electronic Control Unit

A faulty electronic control unit can also trigger the Service Brake Assist light. Modern cars have numerous ECUs managing different systems, including brakes. Signs of a failing brake ECU include multiple dash alerts and changes in pedal feel.

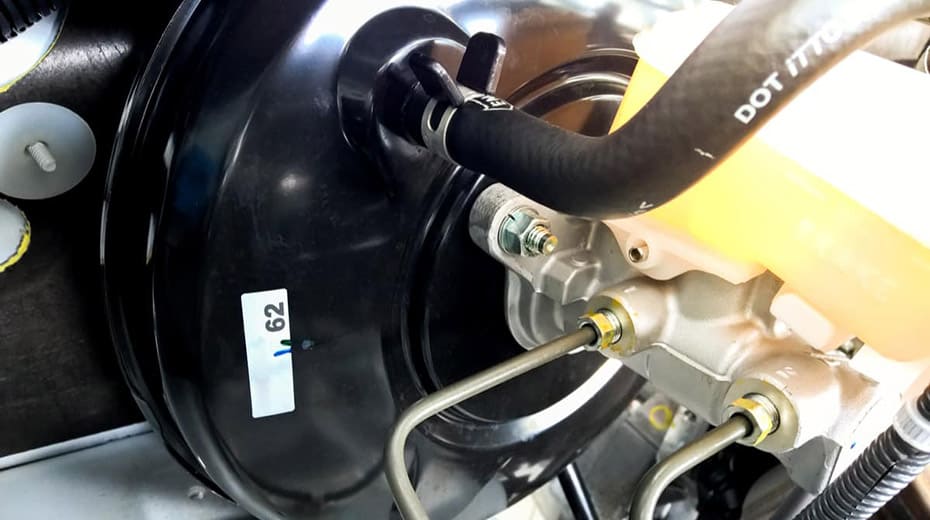

#5. Brake Booster Problem

Brake boosters help enhance braking by increasing hydraulic pressure without requiring extra effort from the driver. If there’s an issue with the brake booster, like a faulty valve or vacuum leak, the Service Brake Assist light might come on.

#6. Wiring or Signal Fault

Brake Assist is a complex system that needs all its parts to communicate. A broken wire, faulty fuse, or signal issue can lead to that warning light appearing on the dashboard.

Is It Safe to Drive with the Service Brake Assist Light On?

Not at all. Driving with the Service Brake Assist light on is a risky move. It might seem like a minor issue, but it could indicate serious problems with the braking system. If the light is on, it’s best to pull over safely and check things out.

How to Fix the Service Brake Assist Light

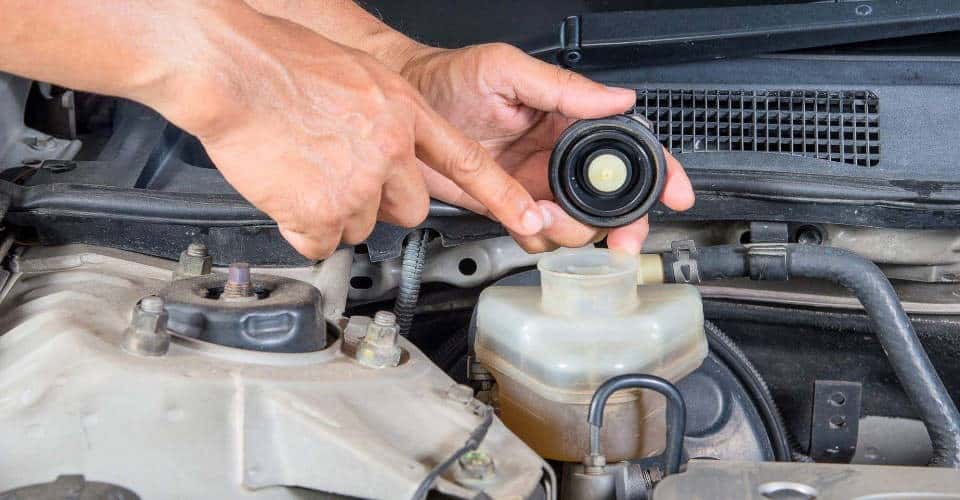

Check the Brake Fluid Level

First thing’s first: check the brake fluid level. If it’s low, top it up, and that might just clear the warning light. If the fluid looks dark or you can’t recall the last time it was changed, consider flushing the system. Most car makers recommend doing this every couple of years or 30,000 miles.

Scan the System for Errors

If the brake fluid is good, grab an OBD II scanner to check for error codes. One common code is 01435, which points to a brake pressure sensor issue. There are others too, like P0556 or P0577, which relate to brake booster problems. If the repairs seem beyond reach, it’s wise to call in a pro.

Reset the Brake Assist System

If everything checks out and no errors are found, resetting the Brake Assist system might do the trick. This process varies by manufacturer, but disconnecting and reconnecting the battery usually works for most models. Just remember to drain the residual power by pressing the brake pedal a few times in between.

What to Do If “Service Brake Assist” Shows Up on the Dash

When the Service Brake Assist light comes on, it’s important to address it quickly for the safety of everyone in the vehicle. Pull over when it’s safe and check the brake fluid levels. If they’re low, add more or call for a tow.

If familiar with an OBD II scanner, diagnosing the issue should be straightforward. Just be careful not to tackle repairs that are beyond skill level. For those without a scanner, they can be found for as little as $30 at most online auto parts stores.
